MTX-RC – SINGLE CYLINDER SET

The MTX-RC Single Cylinder Long Hose set is designed for the diver who prefers a long hose configuration on a single cylinder. It is also the perfect set-up for the recreational diver looking to transition into twinset diving in the future, as the addition of another first stage creates a twinset regulator configuration.





Combining rugged, military-grade engineering with the super-smooth breathing experience that Apeks regulators are renowned for, the MTX-RC single-cylinder set dives your way. Featuring the same freeze-resistant technology enjoyed by the whole MTX-R range, the MTX-RC resists free flow in even the coldest temperatures, while offering the user the additional flexibility to dial it out for a comfortable breath in less extreme environments. All this is achieved using an innovative first-stage design that protects the regulator from freezing and a full set of user controls in the second stage to adjust the breathing performance based on the diver’s individual needs.

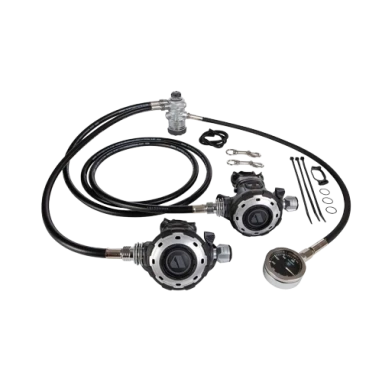

The package includes 2 x MTX-RC primary second stages, 1 x MTX-RC first stage, 1x 2.1m hose, 1x 49cm hose (both double swivel hoses), an HP hose, and a TEK SPG. Includes a tactical-style messenger bag to keep your regulators safe on your travels. Perfectly sized for a laptop, it’s also your new work bag!

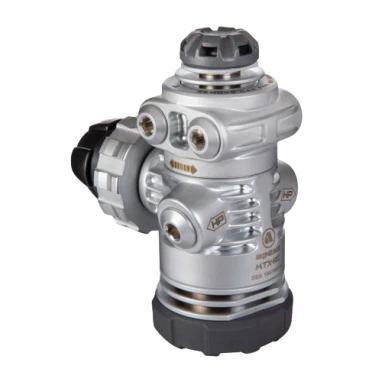

First Stage

Satin-plated brass body with heat-exchanging ribs for maximum thermal performance. Break through, innovative over-molded first-stage endcap and environmental diaphragm helps prevent ice build-up that can cause first-stage free flow in extreme circumstances. Also protects the first stage from impact damage. Ribbed diaphragm clamp for improved heat exchange in cold water conditions. Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium-pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.5 x medium-pressure ports, 4 mounted on a rotating turret for improved hose orientation2 x angled high-pressure ports for optimal hose routing and fitting of transmitters.Double swivel hose for greater freedom of movement and comfort. Easy to grip DIN hand-wheel or over-molded yoke hand-wheel, only requires one hand to release. DIN, Yoke and M26 Thread available, 300bar, 232bar and M26 300bar (O2) respectively. Tested for Octopus use – EN250A to 60 meters of cold water. Nitrox/Oxygen compatible – Up to 40% O2 outside the EU (European Union), within the EU anything above 21% O2 must use an M26 Connection.



2nd Stage

Protective bumpers to protect the second stage from impacts and scratches in the most vulnerable places.
Ergonomic and simple to use venturi lever.
Oversize breathing effort adjuster makes adjustment easy in cold water whilst wearing gloves.
Large purge button.
The reversible second stage is for either a left or right-hand gas supply configuration.
A heat exchanger (patented) dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water for a more comfortable breath.
Features an innovative Diver Changeable Exhaust system (DCE). The system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. The regulator is supplied with both sets of exhaust tees.
Comfo-bite mouthpiece
Flexible nylon braided hose, which has better cold water performance than traditional rubber hose.
Designed and manufactured in the UK.
No single-use plastic in the packaging

Weight DIN – 1.193 kg (2.63lbs)
Max working pressures 1st Stage:
DIN – 300 bar (4351 psi)
2nd Stage: 9-10 bar (131-145 psi)
Certified to: EN250A
Temp range 0.5°C – 55°C
Connections DIN
Nitrox/Oxygen compatible Up to 40% O2 outside the EU (European Union), within the EU anything above 21% O2 must use an M26 Connection.
